The Quick Diagnosis
If your Dingli JCPT series lift is dead in the platform, verify 48 V at the platform harness, check the E-stop circuit for continuity, and sweep the joystick potentiometers. Three checks with a quality multimeter will tell you whether you need a simple switch, a new joystick, or a full controller replacement.

Symptoms & Identification

• Platform controls totally dead, no contactor click or pump hum.
• Some functions work (lift) but others (drive or tilt) do not.
• Jerky or erratic movements when feathering the joystick.
• Ground controls work, but basket controls are silent.

Note: Components may vary by Gen 1 vs Gen 2 series. Verify with your parts manual.

Tools Required

• Quality digital multimeter (≥ 48 V DC range, continuity, resistance)
• Insulated Phillips and flathead screwdrivers
• Terminal pin extraction tool kit
• Dingli service manual for your JCPT model

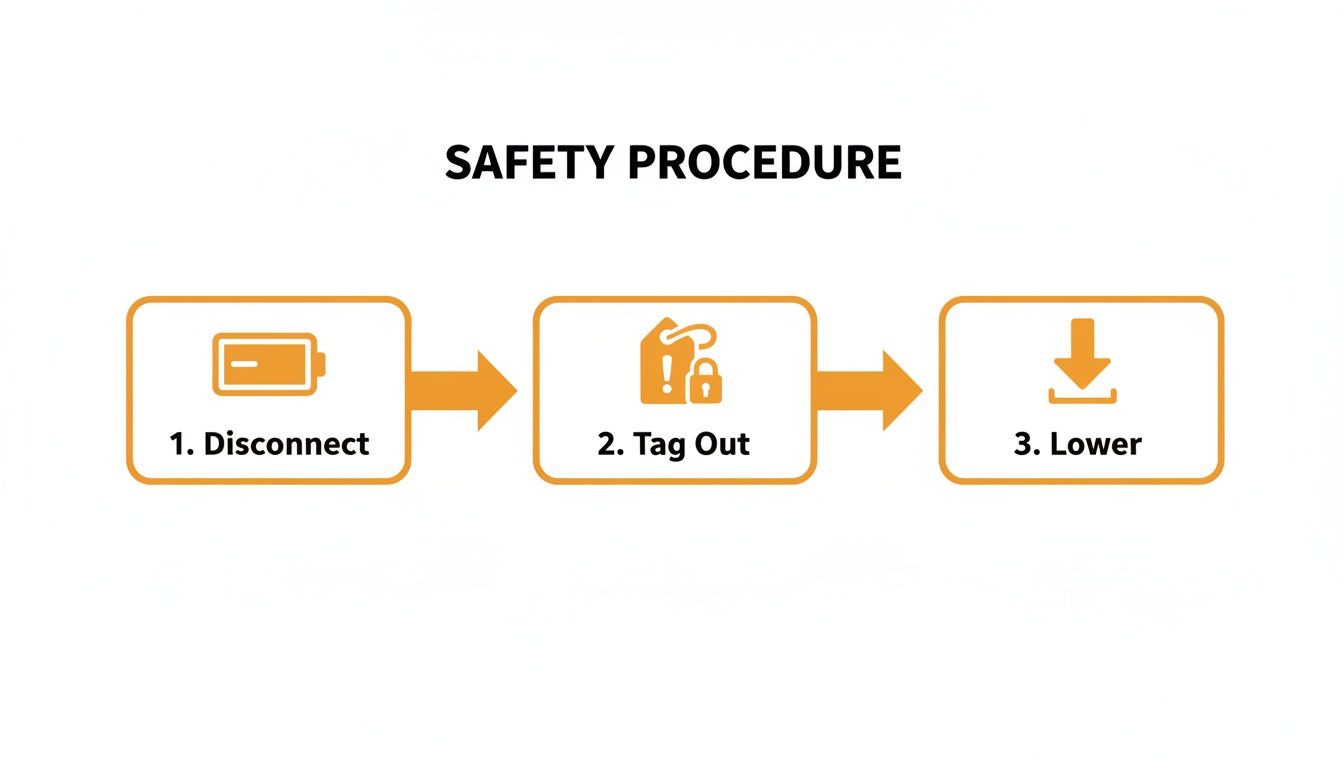

Safety Warning

1. Lower and secure the platform to the ground.
2. Chock the wheels.
3. Tag out the ground and platform controls.
4. Disconnect the main battery—always negative first.
5. Wear safety glasses and insulated gloves rated for electrical work.

Treat every live circuit as energized until you’ve made it dead.

The Technical Guide (Step-by-Step)

1. Test 1: Verify Main Power at Harness

   • Set multimeter to DC Volts (≥ 60 V range).
   • With batteries connected and key ON, back-probe the main harness connector at the upper control box.
   • Expect 46–50 V on a 48 V system.
   • < 44 V signals voltage drop (corroded contacts, failing contactor).
   • 0 V means open circuit (broken wire or blown fuse).

2. Test 2: E-Stop Circuit Continuity

   • Disconnect battery negative.
   • Set meter to Continuity (beep).
   • Unplug main harness and identify E-stop pins.
   • With E-stop pulled out, probe both pins—< 1 Ω and a beep.
   • OL or no beep indicates a broken switch or harness wire.

3. Test 3: Joystick Potentiometer Sweep

   • Battery negative off.
   • Set meter to Resistance (20 kΩ range).
   • Unplug joystick connector.
   • Measure total resistance across outer pins—should read ~ 5 kΩ.
   • Probe wiper to reference pin while moving joystick—smooth sweep 0–5 kΩ.
   • Erratic readings or OL mean a failing potentiometer—joystick replacement required.

4. Test 4: 5 V Sensor Reference Voltage

   • Reconnect batteries and key ON (live test).
   • Set meter to DC Volts (≤ 20 V range).
   • Probe sensor reference pin and ground—expect 4.9–5.1 V.
   • < 4.5 V or > 5.5 V indicates internal regulator failure—controller needs replacement.

Pro Tip: Wiggle the harness gently—if readings bounce, you’ve found a loose or corroded pin.

For cross-reference with other models, read also about other common Dingli JCPT0607A issues or learn more about Dingli fault codes and diagnostics.

Quick Reference Guide

| Component/Pin | Meter Setting | Expected Reading | Common Fault Reading | |--------------------------------------|----------------------|---------------------------|----------------------------------------------| | Main Harness Power Input | DC Volts (VDC) | 46 V – 50 V | 0 V (open) or < 44 V (voltage drop) | | E-Stop Circuit (Run Position) | Continuity (Beep) | Beep / < 1 Ω | No beep / OL (open circuit) | | Joystick Potentiometer | Resistance (Ω) | Smooth 0 – 5 kΩ sweep | Erratic, jumps, or OL (worn pot) | | 5 V Sensor Reference Signal | DC Volts (VDC) | 4.9 V – 5.1 V | < 4.5 V or > 5.5 V (regulator failure) | | Solenoid Coil | Resistance (Ω) | 25 Ω – 50 Ω | OL (burned out) or 0 Ω (shorted) | | Ground Wire to Chassis | Continuity (Beep) | Beep / < 1 Ω | No beep / OL (bad ground) |

The Part You Need

Your multimeter has spoken: the upper control box electronics are toast. Field-serviceable parts include wires, terminals, E-stops, or joysticks. Anything beyond that—voltage regulator failure or multiple dead outputs—means a new box.

Note: Verify your model’s part number in the official Dingli service publications.

Common OEM and OEM-compatible part numbers: DI-0000232 and 00002321B. China Lift Supply stocks these in the US—no 6–8 week wait from China. Same-day shipping from Kansas means your lift is back in service tomorrow, not two months from now.

Can't wait 6 weeks for this part? We have it on the shelf in Kansas. Check the price and availability here: https://www.chinaliftsupply.com

Can't Find Your Answer?

Even with solid readings, you might still run into oddball issues. If power, continuity, and resistance all check out but the box won’t command functions, the main logic board is likely dead. A multimeter can’t see faulty processors or burned-out microchips—swap the entire upper control box.
