The Quick Diagnosis
If your Sinoboom scissor lift is locked out with a Code 18, the pothole guard limit switch has almost certainly failed or is being blocked. The ECU isn't getting the correct "deployed" or "stowed" signal from both guards, triggering a hard safety lockout. You will likely need to replace one of the limit switches.
Symptoms & Identification
- Active Fault Code 18: The ground or platform control screen clearly displays "18".
- Complete Lockout: The machine powers on, but you have no drive, no lift, and no steer functions.
- Flashing Beacon: The machine's beacon will flash when you attempt to enable a function.
- Intermittent Lockouts: The machine may work fine, then suddenly lock out after hitting a bump or driving in wet conditions, pointing to a failing switch or loose wire.
Tools Required
- Multimeter (with a continuity/beep function)
- Metric Socket & Wrench Set (specifically 10mm and 13mm)
- Small Pry Bar or large flathead screwdriver
- Wire Brush & Electrical Contact Cleaner
Safety Warning

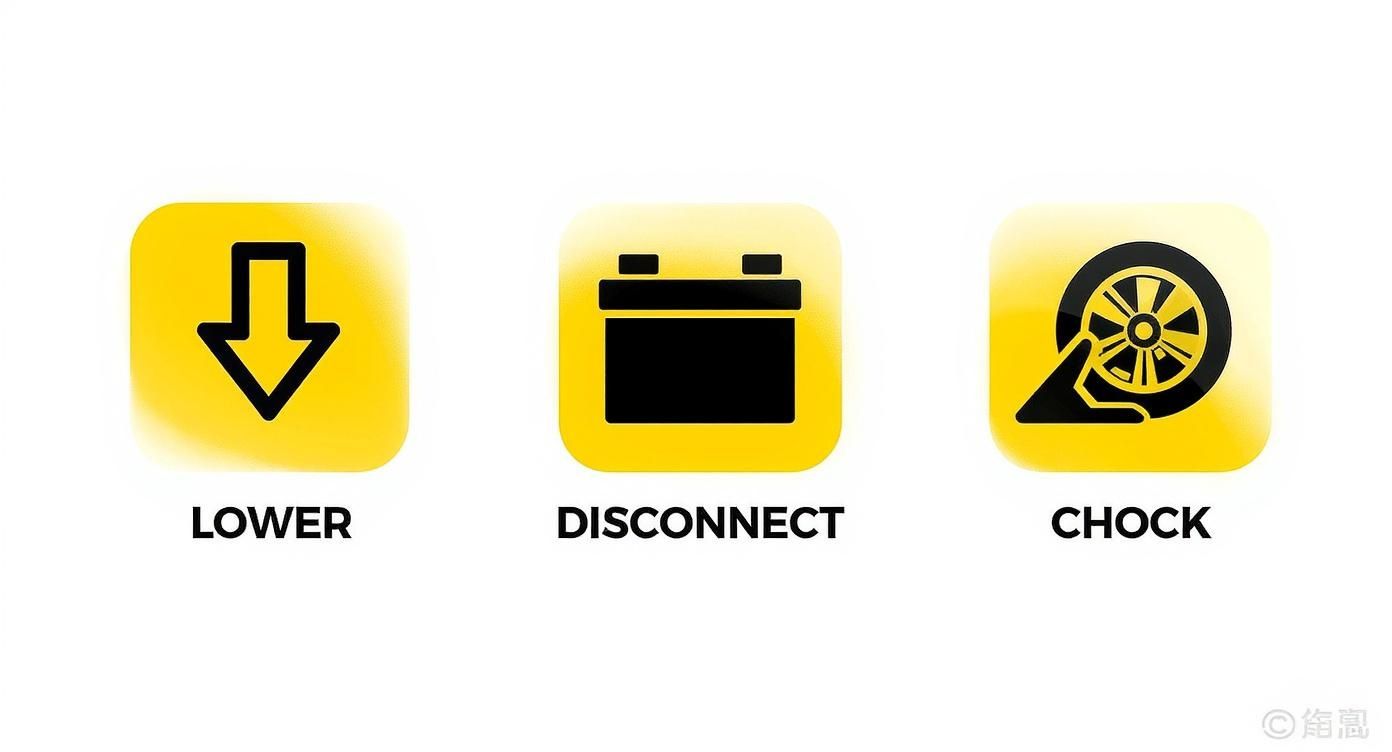

Critical: Park the machine on a level surface, fully lower the platform, and chock the wheels. Before touching any component, disconnect the negative battery terminal first to prevent electric shock or unexpected machine movement.
The Technical Guide (Step-by-Step)
You've confirmed the code, now let's get the machine running. This is a logical process: check for physical obstructions first, then test the electrical components.
1. Mechanical Inspection
Before grabbing a meter, use your eyes. A physical jam is a common cause and an easy fix.
- Inspect Both Pothole Guards: Get on the ground and look for debris like rocks, dried mud, or wood jammed in the guard trays.
- Check for Damage: Look for bent deployment arms or seized pivot points from rust or impact. A bent linkage will prevent the guard from moving freely and activating the switch.
- Test the Movement: Use a pry bar to gently move the guards through their full range of motion. If one is stuck or binds up, you've found the mechanical problem. Fix that before moving on.
2. Electrical Diagnosis
If the mechanical parts move freely, the fault is almost certainly the limit switch itself. Each guard has a switch that tells the ECU its position.
- Locate the Switches: They are mounted on the chassis where the pothole guard linkage makes contact. You'll see a small plunger switch with a wire running to a Deutsch connector.
- Disconnect the Switch: Unplug the connector. Inspect the pins for corrosion (green fuzz) or moisture.
- Set Multimeter to Continuity: This is the setting that beeps. Touch your probes together to confirm you hear a beep.
- Test the Switch:
- Place a multimeter probe on each pin of the switch-side connector.
- With the plunger not pressed, you should hear silence (no continuity).
- Manually press the plunger in. You must hear a solid, continuous beep.
- Release the plunger. The beep must stop immediately.
- Identify the Failure: If you get no beep, a spotty beep, or a beep that won't stop, that switch is bad. Repeat this test on the other side. One of them will likely fail.
3. Replacing the Failed Switch

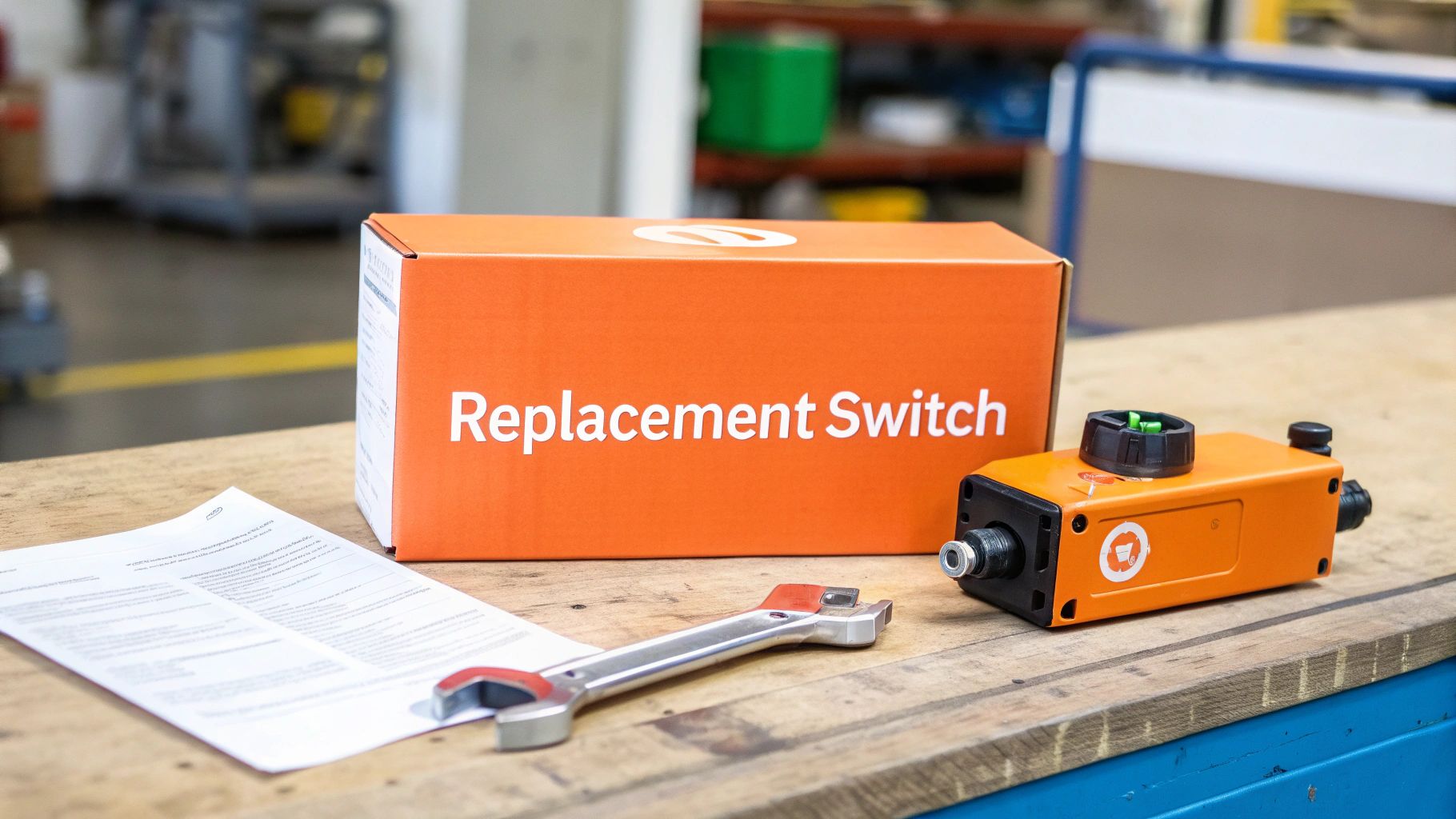

Once you've found the dead switch, the replacement is straightforward.
- Unbolt the Old Switch: They are typically held on by two 10mm bolts. Remove them.
- Install the New Switch: Mount the new switch in the same orientation, ensuring the linkage arm will make square contact with the plunger.
- Secure the Bolts: Tighten the fasteners. Refer to your specific service manual for torque values—do not overtighten.
- Reconnect and Test: Plug the connector in firmly until it clicks. Reconnect the battery, power on the machine, and elevate the platform a few feet to confirm the Code 18 is gone.
Note: Components may vary by Gen 1 vs Gen 2 series. Verify with your parts manual.
