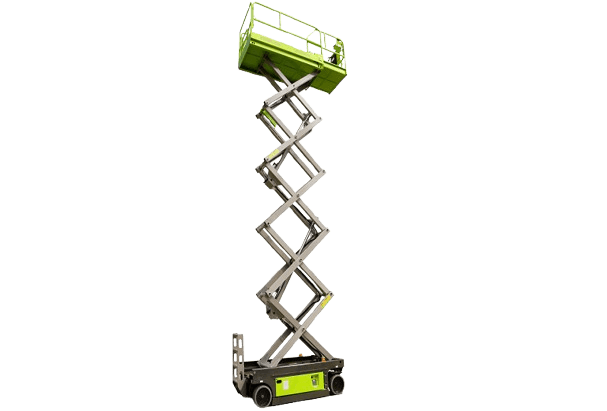

Zoomlion ZS3246DCScissor Lift

Name: Zoomlion ZS3246DC
Brand: Zoomlion

ZS Series

Power Source

Electric (Lead-acid)

Lift Capacity

770 lbs

Platform Size

7ft 7in x 3ft 8in

Alternate Name

ZS1012DC

OEM-Compatible PartsFast ShippingExpert Support

Product Overview

The Zoomlion ZS3246DC is a heavy-duty 32-foot electric scissor lift built for demanding industrial applications. Reaching 38ft 9in working height with a robust 770 lb platform capacity, this unit handles two workers plus tools and materials. Also designated ZS1012DC in metric markets, the ZS3246DC has earned its reputation in steel erection, HVAC installation, and high-bay warehouse work across North America.

Regular maintenance requirements include hydraulic pump inspection, scissor pivot pin lubrication, and controller diagnostics. ChinaLiftSupply maintains extensive parts coverage for the ZS3246DC, stocking aftermarket cylinder seal kits, joystick assemblies, and drive wheel components. Our replacement parts help maintenance teams keep these construction equipment assets running at peak performance while managing repair costs.

Key Features

770 lb platform capacity supports two workers with tools and materials
Wide 44-inch platform provides stable work surface at height
Load sensing system prevents operation when overloaded
Front-wheel drive with front-wheel braking for stability
Maintenance-free lead-acid batteries with optional lithium upgrade

Power System Configuration

Electrical specifications for Zoomlion ZS3246DC

System Voltage

48VDC

Min Capacity

310Ah

Chemistry

Lead-Acid

Traditional flooded battery

Charger Configuration

🔌Integrated (Onboard)

Shop 48V Chargers

Zoomlion ZS3246DC Buying Guide

Zoomlion ZS3246DC Parts & Service Buying Guide

The Zoomlion ZS3246DC is the 32-foot workhorse of the ZS DC electric scissor family — big enough for second-story structural work, compact enough for slab duty. It shares the ZS DC electrical platform with the ZS1930DC and siblings, so most control-side parts cross over; the differences are in the hydraulics and scissor stack, which are sized to the taller mast. Here is what to stock and when.

What breaks first on the ZS3246DC

Battery system — code 68 (battery low) is the most-viewed page we host for this machine. The taller stack works the pack harder than a 19-footer; weak cells show up as mid-lift faults and slow drive before the charger ever fails.
Pothole guards — more travel weight means more debris strikes. Bent linkage and crushed limit switches are routine rental repairs.
Upper control box (PN 1020201927, shared platform) — joystick and enable-switch wear identical to the rest of the ZS DC family.
Lift cylinder seals — the 32-foot cylinder runs higher pressure; weeping seals show as overnight platform drift. Size-specific seal kit — quote with serial.

Diagnose before replacing: the ZS3246DC fault code directory covers all 26 codes with causes and fixes.

Replacement cadence (rule of thumb)

| Component | Typical interval | |---|---| | Batteries | 2-3 seasons; load-test before every code-68 parts order | | Pothole guard switches/linkage | Inspect quarterly on dirt-site fleets | | Lift cylinder seal kit | At first sign of overnight drift | | Pump motor brushes | 800-1,000 hours | | Scissor stack pins & bushings | With visible play or clunk on direction change |

Aftermarket vs factory parts

Factory-spec only: ECU, proportional valve (PN 1010306187), CAN-connected sensors. Aftermarket-friendly: batteries, chargers, switches, seals, bushings, filters, tires.

China Lift Supply stocks OEM-compatible replacements referenced to Zoomlion part numbers — request a quote with your serial for confirmed fitment.

Related resources

Technical Specifications

Specification	Value
Power Source	Electric (Lead-acid)
Lift Capacity	770 lbs
Platform Size	7ft 7in x 3ft 8in
Alternate Name	ZS1012DC
Machine Weight	6,460 lbs
Working Height	38ft 9in

Download Full Specification Sheet (PDF)

Available Parts

Need Parts for ZS3246DC?

We have direct access to the complete Zoomlion parts catalog. Tell us what you need and we'll source it at competitive prices.

Common Replacement Parts

These are the most frequently requested parts for the ZS3246DC. Click "Get Quote" to request pricing and availability.

Part Name	Part Number	Description
Upper Control Box	`1020201927`	Platform control box with joystick and function switches — ZS DC series shared platform; confirm serial before ordering
Hydraulic Pump Motor	`1020005472`	24V 3.3KW DC motor for hydraulic power unit — ZS DC series
Control Valve Assembly	`1010306187`	Proportional control valve for lift/drive functions — ZS DC series

Can't find what you need?

We can source any part for Zoomlion equipment. Contact us with your part number or description.

Customer Reviews

No reviews yet for the Zoomlion ZS3246DC. Operated or serviced one? Be the first to share how it holds up.

Fault Codes & Troubleshooting

Search for error codes displayed on your ZS3246DC to find causes and solutions. Click on any code to expand details.

Showing 26 of 26 fault codes

Code	Description	Solution	Guide
01	Internal ECU Fault	Restart system. Check power supply voltage. If persistent, replace ECU controller.	View Guide
02	Platform ECU Fault	Check CAN bus wiring and connections. Verify ECU power. Replace platform ECU if needed.	View Guide
08	Floating Coil Left Fault	Check coil resistance and wiring. Inspect connector for corrosion. Replace coil if open/shorted.	View Guide
09	Floating Coil Right Fault	Check coil resistance and wiring. Inspect connector for corrosion. Replace coil if open/shorted.	View Guide
14	Angle Sensor Fault	Check angle sensor wiring and connector. Verify sensor mounting. Calibrate or replace sensor.	View Guide
15	Pressure Sensor Fault	Inspect pressure sensor wiring. Check for hydraulic leaks. Replace sensor if faulty.	View Guide
20	Chassis Start Sw Fault	Check start switch contacts and wiring. Clean or replace switch if stuck or faulty.	View Guide
22	Chassis Up Sw Fault	Inspect up switch wiring. Verify switch returns to neutral. Replace if defective.	View Guide
23	Chassis Lift Sw Fault	Check lift switch contacts. Ensure switch is not stuck. Replace if necessary.	View Guide
24	Chassis Down Sw Fault	Inspect down switch wiring and contacts. Replace switch if stuck or malfunctioning.	View Guide
25	Left Turn Switch Fault	Check left turn switch wiring. Verify switch returns to center. Replace if defective.	View Guide
26	Right Turn Switch Fault	Check right turn switch wiring. Verify switch returns to center. Replace if defective.	View Guide
27	Drive Enable Sw Fault	Inspect enable switch and dead-man switch. Check wiring continuity. Replace if faulty.	View Guide
28	Off Neutral Drive Joystick	Return joystick to neutral before powering on. Check joystick calibration. Replace if drifting.	View Guide
32	Platform Start Sw Fault	Check platform start switch contacts and wiring. Replace switch if defective.	View Guide
49	Drive Coil 1 Fault	Check drive coil resistance and wiring. Inspect motor controller. Replace coil if open/shorted.	View Guide
50	Drive Coil 2 Fault	Check drive coil resistance and wiring. Inspect motor controller. Replace coil if open/shorted.	View Guide
54	Up Coil Fault	Check up solenoid coil resistance. Inspect valve connector. Replace coil if faulty.	View Guide
55	Down Coil Fault	Check down solenoid coil resistance. Inspect valve connector. Replace coil if faulty.	View Guide
56	Right Turn Coil Fault	Inspect right turn solenoid. Check coil resistance and wiring. Replace if necessary.	View Guide
57	Left Turn Coil Fault	Inspect left turn solenoid. Check coil resistance and wiring. Replace if necessary.	View Guide
58	Brake Coil Fault	CRITICAL: Check brake solenoid immediately. Inspect wiring. Replace coil - do not operate.	View Guide
68	Low ECU Voltage	Charge batteries immediately. Check battery connections. Test battery capacity. Replace if weak.	View Guide
91	2 Speed Coil Fault	Check speed selector solenoid coil. Inspect wiring. Replace coil if open or shorted.	View Guide
98	Platform Overload	Remove excess weight immediately. Verify load rating. Check load sensor calibration.	View Guide
LL	Chassis Tilt	Move to level ground immediately. Do not operate on excessive slopes. Check tilt sensor.	View Guide

Can't find your error code?

Our technical support team can help diagnose issues and recommend parts.

Keep Your ZS3246DC Running

ChinaLiftSupply stocks thousands of aftermarket and OEM-compatible parts for Zoomlion equipment. Get competitive pricing, fast shipping, and expert technical support.
