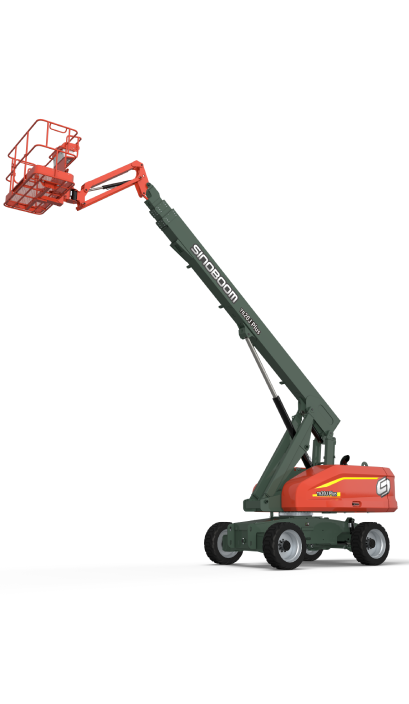

TB20J Plus
Sinoboom Boom Lift
Product Overview
The Sinoboom TB20J Plus is an engine-powered telescopic boom lift delivering 22m working height with flexible horizontal extension options ranging from 14.6m to 17.2m depending on configuration. This machine features a 7-inch display screen and full-proportional control with 3 joysticks for precise gradual control of boom lifting, telescoping, turntable rotation, and driving speed. The TB20J Plus is engineered for rough terrain capabilities with 45% gradeability and four-wheel drive system. Comprehensive hydraulic system maintenance—including weighing system calibration, hydraulic platform leveling checks, and emergency lowering system testing—ensures reliable operation. Automotive-grade sleeves protect all hydraulic pipes, extending service life in demanding outdoor environments.
Key Features
- 7-inch Display with Full-Proportional 3-Joystick Control
- Active Oscillating Function for Uneven Terrain
- CE/ANSI/CSA/EAC Certified for Global Compliance
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSF2.8 / 43kW or Deutz D2.9 L4 / 36.4kW |
| Gradeability | 45% |
| Gross Weight | 11,900kg (26,235lb) |
| Power Source | Diesel |
| Travel Speed | 4.8 km/h |
| Working Height | 22m (72ft 2in) |
| Platform Height | 20m (65ft 7in) |
| Turret Rotation | 360° Continuous |
| Platform Capacity | 250/454kg (551/1000lb) |
| Horizontal Outreach | 14.6m - 17.2m (47ft 11in - 56ft 5in) |
Available Parts
0 parts in stockNeed Parts for TB20J Plus?
We have direct access to the complete Sinoboom parts catalog. Tell us what you need and we'll source it at competitive prices.
Common Replacement Parts
These are the most frequently requested parts for the TB20J Plus. Click "Get Quote" to request pricing and availability.
| Part Name | Part Number | Action |
|---|---|---|
Drive Joystick (Single-Axis) | 203060000017 | |
Lift Joystick (Dual-Axis) | 203060000049 | |
Display Screen Module | 203040000006 | |
Hydraulic Return Filter | 201010000003 | |
Proportional Solenoid Valve | 203030000012 |
Can't find what you need?
We can source any part for Sinoboom equipment. Contact us with your part number or description.
