Sinoboom 2732EScissor Lift

Name: Sinoboom 2732E
Brand: Sinoboom

E Series

Power Source

24V DC

Lift Capacity

551 lbs

Platform Size

7ft 7in x 2ft 8in

Machine Weight

4,994 lbs

OEM-Compatible PartsFast ShippingExpert Support

Product Overview

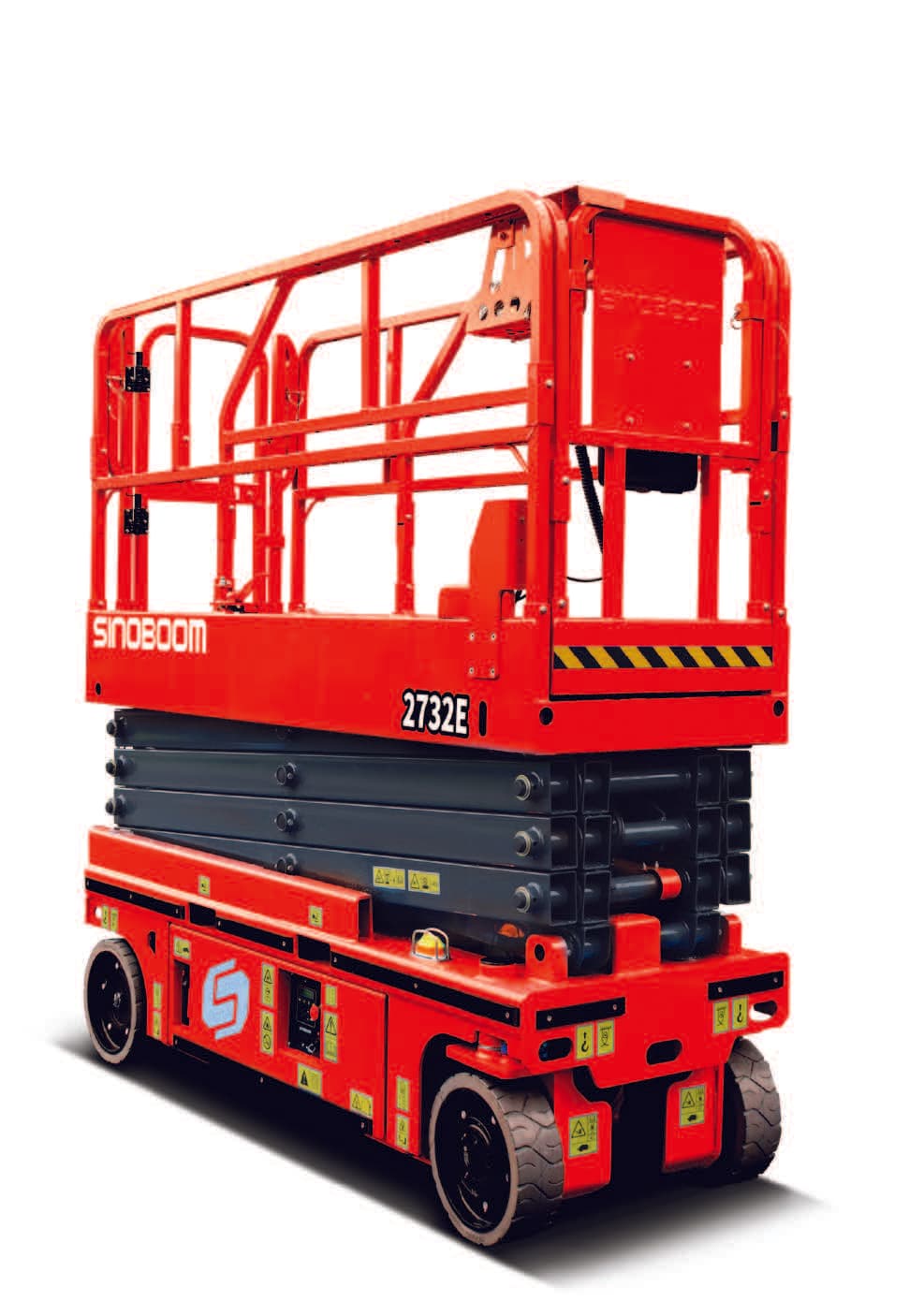

The Sinoboom 2732E reaches 32ft 7in working height in a narrow 32-inch width package, making it the go-to solution for mid-height work in confined spaces. Known internationally as the 0808E, this 551 lb capacity electric scissor lift serves construction, warehouse, and facility maintenance applications where aisle width is limited. The E Series electric drive system delivers reliable performance with reduced maintenance requirements.

Maintain your 2732E fleet with replacement parts from ChinaLiftSupply. Our aftermarket inventory includes proportional valve cartridges, scissor arm bushings, and platform extension rollers. Critical service items include hydraulic hose inspection, drive wheel replacement, and emergency lowering system testing.

Key Features

Narrow 32-inch width navigates tight aisles and doorways
E Series electric drive eliminates hydraulic drive maintenance
32ft 7in working height for mid-rise applications
Global designation 0808E for international service support

Power System Configuration

Electrical specifications for Sinoboom 2732E

System Voltage

24VDC

Min Capacity

310Ah

Chemistry

Lead-Acid

Traditional flooded battery

Charger Configuration

🔌Integrated (Onboard)

Shop 24V Chargers

Technical Specifications

Specification	Value
Power Source	24V DC
Lift Capacity	551 lbs
Platform Size	7ft 7in x 2ft 8in
Machine Weight	4,994 lbs
Working Height	32ft 7in
Global Model Number	0808E

Download Full Specification Sheet (PDF)

Available Parts

Need Parts for 2732E?

We have direct access to the complete Sinoboom parts catalog. Tell us what you need and we'll source it at competitive prices.

Customer Reviews

No reviews yet for the Sinoboom 2732E. Operated or serviced one? Be the first to share how it holds up.

Fault Codes & Troubleshooting

Search for error codes displayed on your 2732E to find causes and solutions. Click on any code to expand details.

Showing 31 of 31 fault codes

Code	Description	Solution	Guide
01	System Initialization Fault	Check the ECU connections and power supply. Reset system. Replace ECU if persistent.	View Guide
02	System Communication Fault	Check platform control wiring, ECU connections, battery voltage, and relay on ground control.	View Guide
03	Invalid Option Setting	Reset the option code using service software. See Service manual for instructions.	View Guide
04	Calibration Fault	Perform full system calibration procedure. Contact service technician.	View Guide
08	Key Switch Error	Check key switch outputs and wiring. Clean or replace switch if defective.	View Guide
10	MC Communication Fault	Check connections at motor controller. Verify CAN bus wiring. Replace MC if needed.	View Guide
103	Battery Draining	Batteries are discharging. Consider charging soon to avoid shutdown.	View Guide
104	Motor Controller Fault	Check motor controller diagnostics for specific fault. See individual MC fault codes.	View Guide
12	Up/Down Switch ON at Power-up	Check wiring on toggle switch. Ensure switch returns to neutral. Replace if stuck.	View Guide
18	Pothole Guard Fault	Check pothole guard switches and wiring. If stowed, verify limit switch operation.	View Guide
31	Pressure Sensor Fault	Check option code settings. Inspect pressure sensor wiring. Replace sensor if faulty.	View Guide
32	Angle Sensor Fault	Check wiring to angle sensor. Normal voltage range is 1.9-3.8V. Check option code.	View Guide
35	Pressure Sensor 2 Fault	Check pressure sensor outputs and wiring. Replace pressure sensor if defective.	View Guide
36	Battery Drain Alarm	Charge batteries immediately. Check for parasitic drains. Test battery capacity.	View Guide
42	Left Turn Switch Fault	Check left steer button contacts and wiring. Verify button returns to neutral.	View Guide
43	Right Turn Switch Fault	Check right steer button contacts and wiring. Verify button returns to neutral.	View Guide
46	Joystick Enable Switch Fault	Wait several seconds before enabling. Check joystick dead-man switch operation.	View Guide
47	Joystick Not in Neutral	Return joystick to neutral before powering on. Check joystick calibration. Replace if drifting.	View Guide
52	Drive Forward Coil Fault	Check forward drive solenoid and wiring. Measure coil resistance. Replace if open/shorted.	View Guide
53	Drive Reverse Coil Fault	Check reverse drive solenoid and wiring. Measure coil resistance. Replace if open/shorted.	View Guide
54	Lift Up Coil Fault	Check lift solenoid and wiring. Inspect valve connector. Replace coil if faulty.	View Guide
55	Lift Down Coil Fault	Check down solenoid and wiring. Inspect scissor harness for crushed or pinched wires.	View Guide
56	Right Turn Coil Fault	Check right steering solenoid and wiring. Measure coil resistance. Replace if needed.	View Guide
57	Left Turn Coil Fault	Check left steering solenoid and wiring. Measure coil resistance. Replace if needed.	View Guide
68	2732E Low Voltage Fault (battery / ECU under-voltage)	Sinoboom 2732E code 68 fix: charge overnight, load-test under lift, inspect battery cables and chassis grounds to the ECU/PCU, then verify charger output. If you actually run a 1330SE, use the 1330SE code 68 guide instead — the fault tables look similar but cable layouts differ by model.	View Guide
80	Over 80% Load Warning	Warning only - platform getting close to weight limit. Consider reducing load.	View Guide
90	Over 90% Load Warning	Consider removing weight from platform. Check load sensor calibration.	View Guide
99	Over 99% Load Warning	Platform has reached weight capacity. Do not add more load.	View Guide
LL	Machine Tilted	Move to level ground immediately. Check wiring to tilt sensor. Inspect tilt sensor.	View Guide
OL	Platform Overloaded	CRITICAL: Remove excess load immediately. Do not operate until load is reduced.	View Guide
UP	Platform Up Limit	Normal indication - platform has reached maximum extension height.	View Guide

Can't find your error code?

Our technical support team can help diagnose issues and recommend parts.
