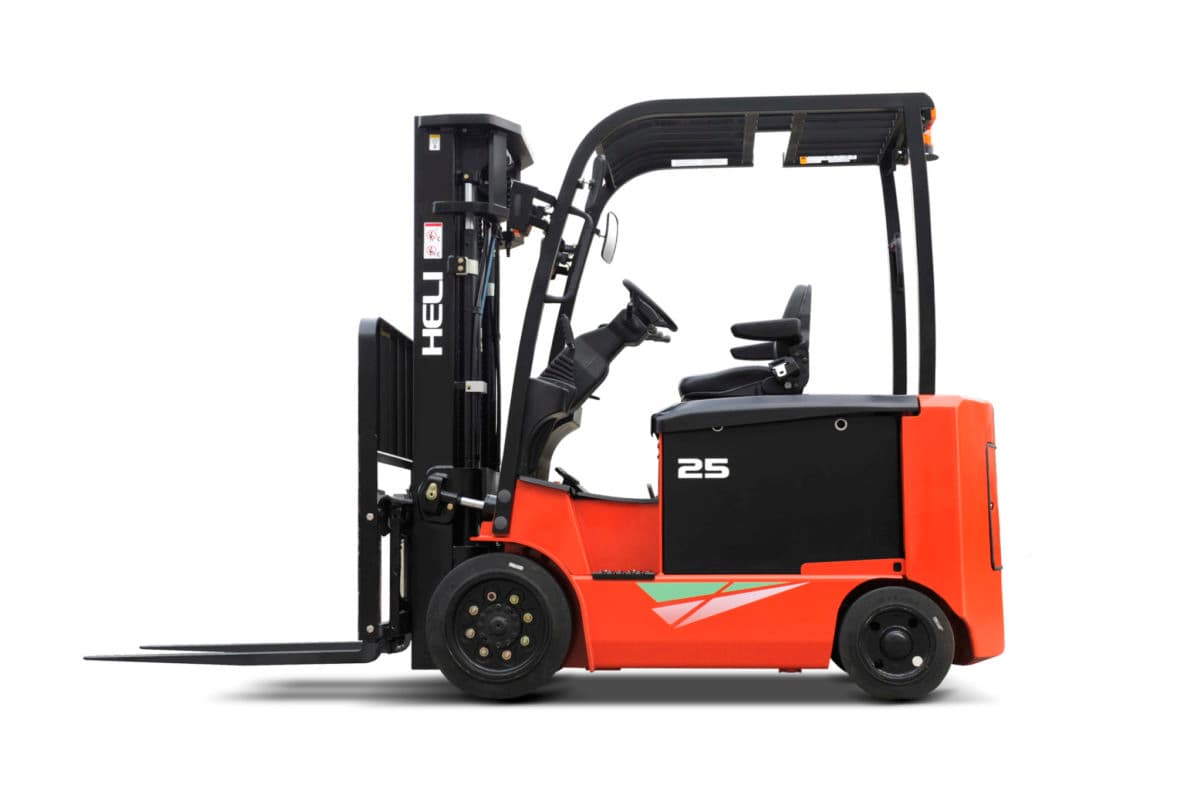

Heli CPD20-GElectric Forklift
G-Series Series
Product Overview
The Heli CPD20-G is a 2-ton (4,400 lb) electric counterbalance forklift — the volume seller in the G-Series electric lineup. A 48V 400Ah lead-acid battery powers an AC drive system with regenerative braking and creep-speed control for precision pallet handling. Standard 3-meter mast; 4-meter and 4.5-meter triplex options handle most general warehouse applications.
The 48V/400Ah battery pack is the single largest replacement cost on the CPD20-G. OEM packs from Heli run $4,500-$6,500 with 8-12 week lead times, and dealers will often quote a full pack when only 2-3 cells are dead. Real-world failure mode is almost always cell-level — a $200 cell swap can recover 80%% of pack capacity if you catch it early. The CPD20-G pack is built from standard ITA Class II cells with no proprietary BMS, so individual cells are user-serviceable.
We stock 48V chargers, individual 6V/8V cells for pack rebuilds, battery hydrometers, cable kits, and Curtis controller replacements for the CPD20-G. Same-day shipping from our US warehouse. Diagnose before you replace.
Power System Configuration
Electrical specifications for Heli CPD20-G
System Voltage
48VDC
Min Capacity
400Ah
Chemistry
Lead-Acid
Traditional flooded battery
Charger Configuration
🔋External Charger Required
Technical Specifications
| Specification | Value |
|---|---|
| Mast Type | 2-stage (3-stage Triplex / 4m / 4.5m available) |
| Tire Type | Cushion (Pneumatic optional) |
| Controller | Curtis 1238 AC (typical) |
| Motor Type | AC Drive (twin traction motors) |
| Lift Height | 118 in / 3,000 mm (Standard) |
| Load Center | 20 in (500 mm) |
| Power Source | 48V Electric (Lead-Acid) |
| Travel Speed | 14 km/h (Loaded) / 15 km/h (Unloaded) |
| Load Capacity | 4,400 lbs (2,000 kg) |
| Overall Width | 43.3 in (1,100 mm) |
| Service Weight | 7,720 lbs (3,500 kg) |
| Turning Radius | 76.8 in (1,950 mm) |
| Battery Capacity | 400 Ah |
Available Parts
132 parts for this modelShowing the 12 most commonly requested items for the CPD20-G. Fitment is based on part category — include your serial number and engine data plate in your quote so we can confirm the correct part.
Heli-compatible aftermarket replacement — Filter. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Cylinder - Master. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Switch. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Universal Coupling. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Drum - Brake. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Switch - Steering Column. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Filter - Air Outer. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Bearing - Mast Roller. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Bearing - Mast Roller. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Filter - Oil. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Cylinder - Master. Request a quote for pricing and availability.
Heli-compatible aftermarket replacement — Valve, Solenoid,F/R Sole E0302. Request a quote for pricing and availability.
